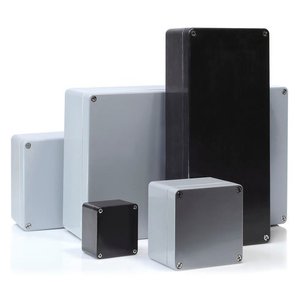

Very robust, dust and waterproof polyester housing made of fiberglass-reinforced polyester material available up to protection class IP68. Ideal for outdoor applications and wherever harsh environmental conditions prevail. Very often used as a terminal box or distribution box (e.g. in vehicle construction) to protect sensitive and expensive electronics. The polyester housings are available in 26 different sizes. Our polyester enclosures are RoHS and REACH compliant.

Technical characteristics:

• glass fiber reinforced polyester in the colors RAL7000 (gray) or RAL9011 (black) Protection class IP66, IP67, IP68 according to DIN EN 60529
• Shock resistance: 7 joules according to EN 60079-0
• Surface resistance: 10 ^ 12 Ohm / Black: <10 ^ 9 Ohm
• Flammability: V0, self-extinguishing, UL94
• Dielectric strength: 18kV / mm
• Temperature range: -60 ° C to + 165 ° C captive cover screws made of stainless steel 1.4301 (A2)
• Neoprene, foamed PUR seal or optional silicone round cord
  Fastening thread M4 / M6 in the base bars to accommodate e.g. Circuit boards or a mounting plate
• We are happy to offer you accessories on request
