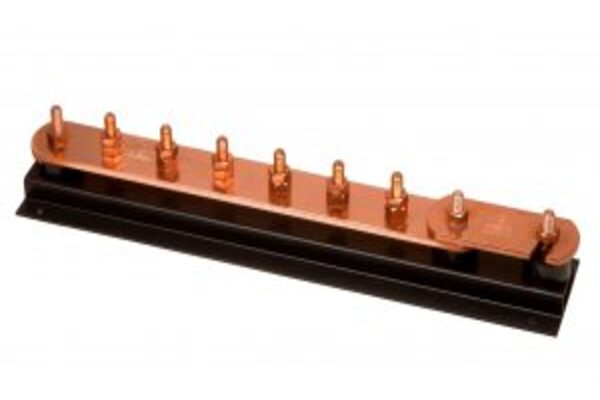

Material for Disconnecting Links and Earth Bars:
Bar: 50 mm x 6 mm hard drawn Copper Bar as per BS EN 1360L
Base: Plastic. Also available with Steel Base on request.
Fittings: M10 Hexagon Head Bolts, Nuts & Washers.
Other sizes & combinations of Earth Bars/Disconnecting Links are
manufactured as "Special Items" on request.
| No. of Terminations | Lmm | Wmm | Product Code |
| 6 | 400 | 90 | CI-ERA-DL 14 |
| 8 | 500 | 90 | CI-ERA-DL 15 |
| 10 | 600 | 90 | CI-ERA-DL 16 |
| 12 | 750 | 90 | CI-ERA-DL 17 |
| 14 | 850 | 90 | CI-ERA-DL 18 |
| 16 | 950 | 90 | CI-ERA-DL 19 |
| 18 | 1050 | 90 | CI-ERA-DL 20 |
| 20 | 1150 | 90 | CI-ERA-DL 21 |
| 22 | 1250 | 90 | CI-ERA-DL 22 |
| 24 | 1400 | 90 | CI-ERA-DL 23 |
| 26 | 1500 | 90 | CI-ERA-DL 24 |
| 28 | 1600 | 90 | CI-ERA-DL 25 |
| 30 | 1700 | 90 | CI-ERA-DL 26 |
